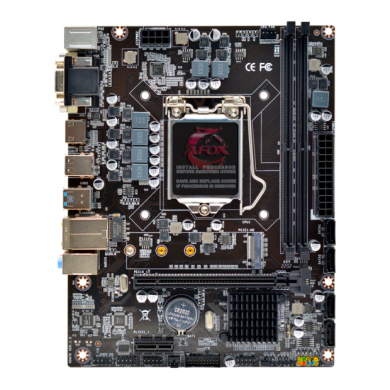

AFOX IH510-MA2-V2

• DESCRIPTION
• SPECIFICATION
• BIOS / DRIVERS UPDATE
• REQUIREMENT

Platform

INTEL Socket 1200

Model Name

IH510-MA2-V2

Chipset

Intel® H510

CPU Supports

Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports Intel 10th /11th Generation (CPU up to 125 watts)

FSB

2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz

Memory

Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz  1.2V

Dimm

2 x Memory Slots (Max. capacity of system memory 64GB)

Onboard Graphics

Intel® HD Graphics

PCI/PCI-E Slots

1 x PCI Express 4.0/3.0 x 16 slot
(-11th Gen Intel ® processors support PCIe 4.0 x16
-10th Gen Intel ® processors support PCIe 3.0 x16)
1 x PCI Express x1 slot

SATA

4 x SATA III
1 x M.2 (PCIe NVMe Gen3 x4)

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8111 Gigabit Ethernet on board
Wake-On-LAN

Back Panel I/Os

1 x HDMI Port
1 x DVI Port
1 x D-Sub (VGA) Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x Com
1 x DEBUG1

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17*22cm)

Mounting

6 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
